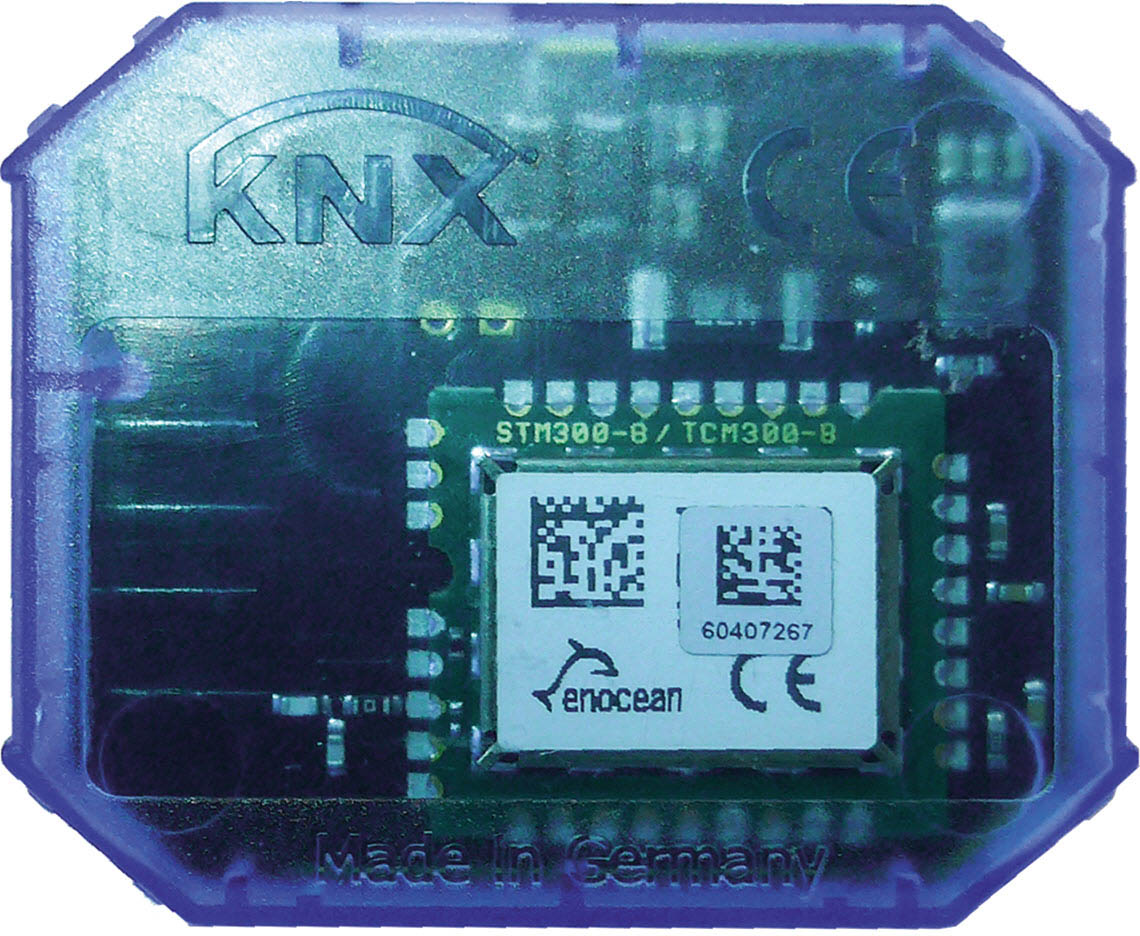

STC-KNX UP
STC-KNX UP
Gateway | EnOcean (868 MHz), KNX (TP)
bidirectional, transmitting/receiving channels: 8 (Rx) + 8 (Tx), internal antenna
| Application/type | Gateway |
|---|---|
| Purpose | Gateway |
| Interface | EnOcean (868 MHz), KNX (TP) |
| Configuration | BUS, ETS (KNX) |
| Network technology | KNX (TP1) |
| Radio technology | EnOcean (IEC 14543-3-10) 868 MHz, transmission power <10 mW |
| Data transmission | bidirectional, transmitting/receiving channels, 8 (Rx) + 8 (Tx), internal antenna |
| Operating range temperature (°C) | -5..+45 |
| Operating ranges temperature (°C) | -5..+45 |
| Operating range humidity | max. 85% rH non-condensing |
| Power supply | supply via BUS, 29 V = SELV |
| Power consumption | max. 12 mA |
| Enclosure | ABS |
| Colour | blue |
| Protection (IP) | IP20, according to EN 60529 |
| Connection | removable plug-in terminal, max. Ø=0,8 mm |
| Mounting | flush-mounted in standard EU box (Ø=60 mm) |
| Packaging length (mm) | 90 |
| Packaging width (mm) | 90 |
| Packaging height (mm) | 35 |
| Packaging | case packaging |
| Device length (mm) | 48 |
| Device width (mm) | 40 |
| Device height (mm) | 18 |
| Notes | product database (freeware via download) |
