| Application/type |
Outdoor sensor |
| Purpose |
Measure values |
| Sensor elements |
temperature |
| Measured values |
temperature |
| Interface |
Passive, Active, 0..5 V, 0..10 V, 4..20 mA, EnOcean (868 MHz), LoRaWAN® (868 MHz), RS485 Modbus, RS485 BACnet, Switch contact |
| On stock |
Yes |
| Configuration |
USEapp, uConfig, airConfig, BUS, jumper, DIP switches, LoRaWAN® Downlink, (depending on type) |
| Sensor |
NTC10k, Pt1000 DIN cl. B, Ni1000 DIN cl. B, Pt1000 1/3 DIN, Pt100 DIN cl. B, Ni1000TK5000, Pt100 1/3 DIN, NTC10k Precon, NTC10k Carel, NTC1,8k, NTC5k, NTC20k, LM235Z, KTY81-110, KTY81-121, KTY81-122, KTY81-210, DS18B20 1-wire, passive, SI-Protection against permeation of humidity and mechanical stress (e.g. vibration) |
| Output voltage |
0..10 V or 0..5 V, adjustable via jumper, live-zero configuration via app or uConfig, min. load 5 kΩ, min. load 10 kΩ |
| Output current |
4..20 mA, max. load 500 Ω |
| Output switch contact |
2x floating contact NO for 24 V ~ or 24 V = / 3 A |
| Network technology |
RS485 Modbus, RS485 BACnet (MS/TP) |
| Radio technology |
EnOcean (IEC 14543-3-10) 868 MHz, transmission power <10 mW, standard radio telegram, EEP A5-02-14 (4BS), optionally configurable, LoRaWAN® (868 MHz) |
| Data transmission |
bidirectional, RTU, half-duplex, baud rate 9.600, 19.200, 38.400 or 57.600, parity: none (2 stop bits), even or odd (1 stop bit), wake up time: 100 sec. (default), heartbeat cycle: every 10th wakeup, optionally configurable |
| Operating range temperature (°C) |
-35..+90 |
| Operating ranges temperature (°C) |
-20..+70, -30..+70, -35..+70, -35..+90 |
| Output signal temperature |
scaling analogue output, scaling according EEP, -20..+60 °C, -20..+80 °C (default setting), -50..+50 °C (default setting), selectable from 4 temperature ranges -50..+50 | -20..+80 | -15..+35 | -10..+120 | 0..+50 | 0..+100 | 0..+160 | 0..+250 °C, adjustable at the transducer, optionally configurable |
| Accuracy temperature |
±0,5 K (typ. at 21 °C), within default measuring range, ±0,3 K (typ. at 0 °C), ±0,4 K (typ. at 0 °C), ±0,2 K (typ. at 25 °C, temperature dependend), potentiometer for offset adjustment, offset setting via app or uConfig |
| Power supply |
15..24 V = (±10%) SELV, 15..35 V = SELV, 24 V ~ (±10%) SELV, 19..29 V ~ SELV, solar cell, maintenance-free internal super cap, use of back-up battery possible for insufficiently lit environments, battery LS14250 (3,6 V) |
| Power consumption |
typ. 0,4 W (24 V =), typ. 0,5 W (24 V =), max. 0,7 W (24 V =), max. 2,5 W (24 V =), 0,8 VA (24 V ~), 1,8 VA (24 V ~), 4,3 VA (24 V ~) |
| Material in touch with media |
Sensor probe, Ø=6 mm, stainless steel V2A (1.4305), length 25 mm, for faster response |
| Display |
LCD 29x35 mm, RGB backlight, with traffic light function, threshold values configurable, optionally configurable via app or uConfig |

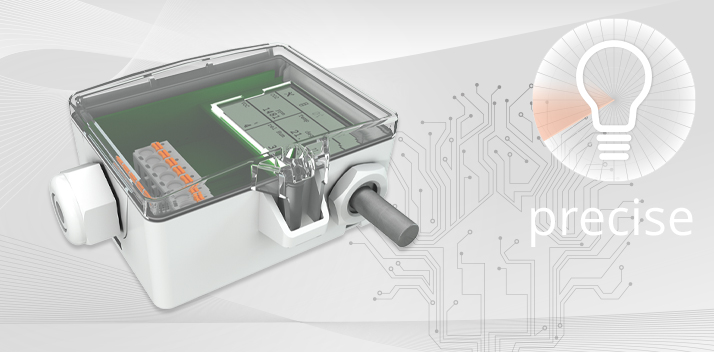

| Enclosure |
USE-S, impact- and shock-resistant enclosure with quick-release cover, PC, USE-M, impact- and shock-resistant enclosure with quick-release cover, PC |
| Colour |
pure white, transparent cover |
| Protection (IP) |
IP65, according to EN 60529 |
| Connection |
removable cable entry flextherm M20 for wire Ø=4,5..9 mm, removable cable entry M25 with fourfold cable entry for wire with max. Ø=7 mm, removable plug-in terminal, max. 2,5 mm², BUS max. 1,5 mm², relay max. 1,5 mm² |
| Connection cable |
2-wire, 3-wire, 4-wire |
| Delivery content |
incl. mounting base enclosure USE-S pure white, incl. mounting base enclosure USE-M pure white, incl. mounting set (screws and accessories) |
| Packaging |
case packaging |
| Notes |
to use the free software airConfig (download) a USB stick, which is able to send and receive EnOcean telegrams, is necessary. The EnOcean USB stick (incl. license) is included in airScan (item No. 566704 for 868 MHz), (refer to accessories), Please note our sheet 'Information EasySens® Radio', external antenna available on request |
| Gefahrgut |
No |
