Application/type |

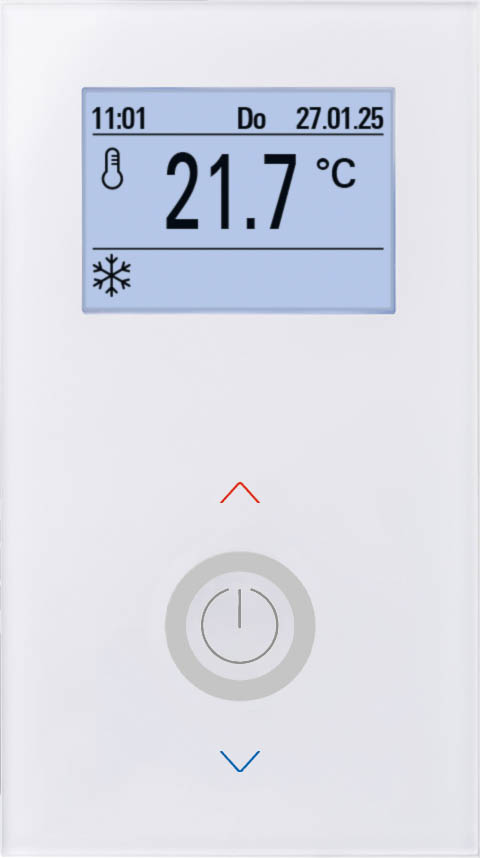

Room controller |
Purpose |
Room Climate Control, Measure values |
Measured values |
temperature, relative humidity, CO2 |
Interface |
Active, 0..10 V, EnOcean (868 MHz), RS485 Modbus, RS485 BACnet, KNX (TP), Switch contact |
Functions |
hardware outputs, heating + cooling relay, heating + cooling 0..10 V, to control valve actuators SAB, change-over, integrated PI controller, integrated PI and two-/three-position controller, frost protection, window/door monitoring, presence, MSG-server for 2nd zone |
Operating functions |
setpoint adjustment temperature, standby/presence detection |
Operating elements |
3 touch buttons |
Configuration |
uConfig, BUS, ETS (KNX) |
Output voltage |
0..10 V, 3x 0..10 V, max. load 5 mA, to control 6-way control valve, to control 6-way control valve and heating + cooling |
Output switch contact |
2x contact NO, 1x heating, 1x cooling, load max. 500 mA (240 V, Triac) |
Input |
1x input for NTC10k or floating contact, 1x input for potential contact (230 V ~), 1x input for floating contact, 2x input for floating contact |
Network technology |
RS485 Modbus, RS485 BACnet (MS/TP), KNX (TP1) |
Radio technology |
EnOcean (IEC 14543-3-10) 868 MHz, transmission power <10 mW |
Data transmission |
20 channels for sender, receiver or message-server, RTU, half-duplex, baud rate 9.600, 19.200, 38.400 or 57.600, parity: none (2 stop bits), even or odd (1 stop bit) |
Operating range temperature (°C) |
0..50 |
Output signal temperature |
scaling according EEP, 0..+40 °C, 0..+50 °C |
Operating range humidity |
max. 85% rH non-condensing |
Accuracy temperature |
±1 K (typ. at 21 °C) |
Measuring range humidity |
0..100% rH non-condensing |
Accuracy humidity |
±2% between 10..90% rH (typ. at 21 °C) |
Measuring range CO2 |
0..2000 ppm |
Accuracy CO2 |
±50 ppm +3% of measured value (typ. at 21 °C, 50% rH, 1015 hPa) |
Power supply |
24 V = (±10%) SELV, 24 V ~ (±10%) SELV, 85..260 V ~ |
Power consumption |
typ. 2,5 W (24 V =), max. 3 VA (260 V ~) |
Display |
LCD 60x44 mm, 240x160 px, backlight cold white |
Enclosure |
PC, cover glass |
Colour |
pure white, black |
Protection (IP) |
IP30, according to EN 60529 |
Connection |
terminal block, max. 1,5 mm², inputs max. 1,0 mm² |
Mounting |
in standard EU box (Ø=60 mm, depth min. 45 mm) |
Packaging length (mm) |
196 |
Packaging width (mm) |
162 |
Packaging height (mm) |
37 |
Packaging |
case packaging |
Device length (mm) |
140 |
Device width (mm) |
78 |
Device height (mm) |
35 |
Weight (g) |
195 |
Notes |
Please note our sheet 'Information EasySens® Radio', KNX certification: pending |
Gefahrgut |
No |
