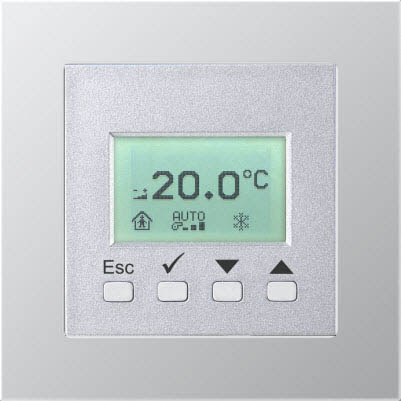

WRF06 LCD temp VV ltype3 Jung aluminium

Room operating unit temperature | Active, 0..10 V | Room Climate Control, Measure values

Application/type	Room operating unit
Purpose	Room Climate Control, Measure values
Sensor elements	temperature
Measured values	temperature
Interface	Active, 0..10 V
On stock	No
Functions	temperature control
Operating functions	setpoint adjustment temperature, setpoint adjustment OK/cancel
Operating elements	4 buttons
Configuration	buttons
Output voltage	2x 0..10 V, min. load 1 kΩ, temperature actual value and setpoint
Operating range temperature (°C)	0..+50
Operating ranges temperature (°C)	0..+50
Output signal temperature	0..+50 °C
Operating range humidity	max. 85% rH non-condensing
Accuracy temperature	±0,5 K (typ. at 21 °C)
Power supply	15..24 V = (±10%) SELV, 24 V ~ (±10%) SELV
Power consumption	typ. 0,8 W (24 V =), 2,5 VA (24 V ~)
Enclosure	PC
Colour	Jung aluminium
Protection (IP)	IP30, according to EN 60529
Connection	terminal block, max. 1,5 mm², pluggable
Switch ranges	Jung, (please specify the desired frame when ordering)
Switch range Jung	A 500, A 550, A creation, A plus, AS 500, CD 500 with intermediate frame, LS 990 with intermediate frame
Mounting	flush-mounted in standard EU box (Ø=60 mm)
Packaging length (mm)	90
Packaging width (mm)	90
Packaging height (mm)	80
Packaging	case packaging
Device length (mm)	77
Device width (mm)	77
Device height (mm)	38
Gefahrgut	No
