Thermokon
87.70 EUR
(plus surcharge required accessory)
Item No.: 734509
Group: ES1
Add to comparison list Add to project Show accessories

Wireless Switches BJ 63x63

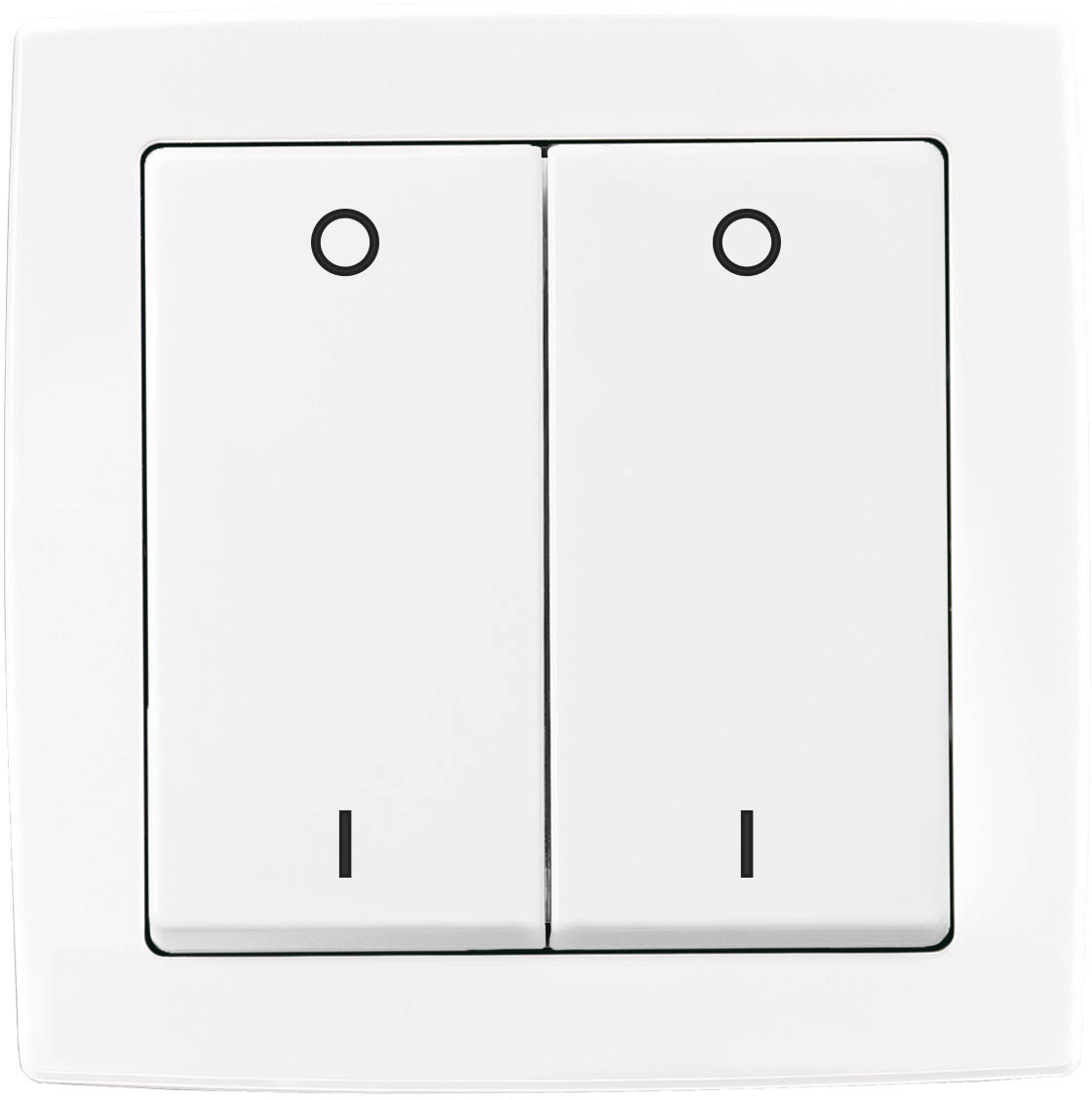

Switch 4-channel BLE light BJ63x63 studio white

Application/type Switch
Purpose Lighting control
Interface Bluetooth® Low Energy
Functions lighting
Operating functions light ON/OFF/DIM
Operating elements 2 switches, labelling {O/I}
Configuration NFC-based / DMC
Radio technology Bluetooth® Low Energy (BLE), 2,4 GHz, BLE channel 37 (2402 MHz), channel 38 (2426 MHz) and channel 39 (2480 MHz), Beacon
Data transmission immediately on using the switch
Operating range temperature (°C) -25..+65
Operating ranges temperature (°C) -25..+65
Operating range humidity max. 85% rH non-condensing
Power supply maintenance-free electrodynamic energy generator
Enclosure PC
Colour studio white
Switch ranges Busch-Jaeger
Switch range Busch-Jaeger Busch-axcent®, carat®, future® linear, solo®, (please specify the desired frame when ordering)
Mounting surface-mounted flat on base using adhesive foil or screws
Delivery content incl. adhesive foil for mounting
Packaging length (mm) 90
Packaging width (mm) 90
Packaging height (mm) 35
Packaging case packaging
Device length (mm) 73
Device width (mm) 73
Device height (mm) 15
Notes actuation force 7 N, actuation range 2 mm, operating cycle quantity > 50.000, frame designs Busch-Jaeger solo®, future® linear and Busch-axcent® at the same price, please ask for carat®, Busch-balance® SI see Wireless Switches 55x55, Please note our sheet 'Information EasySens® Radio', configuration interface NFC forum type 2 tag (ISO/IEC 14443 parts 2 and 3), Data Matrix Code (DMC) on the back of the unit for commissioning
87.70 EUR
(plus surcharge required accessory)
Item No.: 734509
Group: ES1
Add to comparison list Add to project Show accessories
