Wireless Switches BJ 63x63

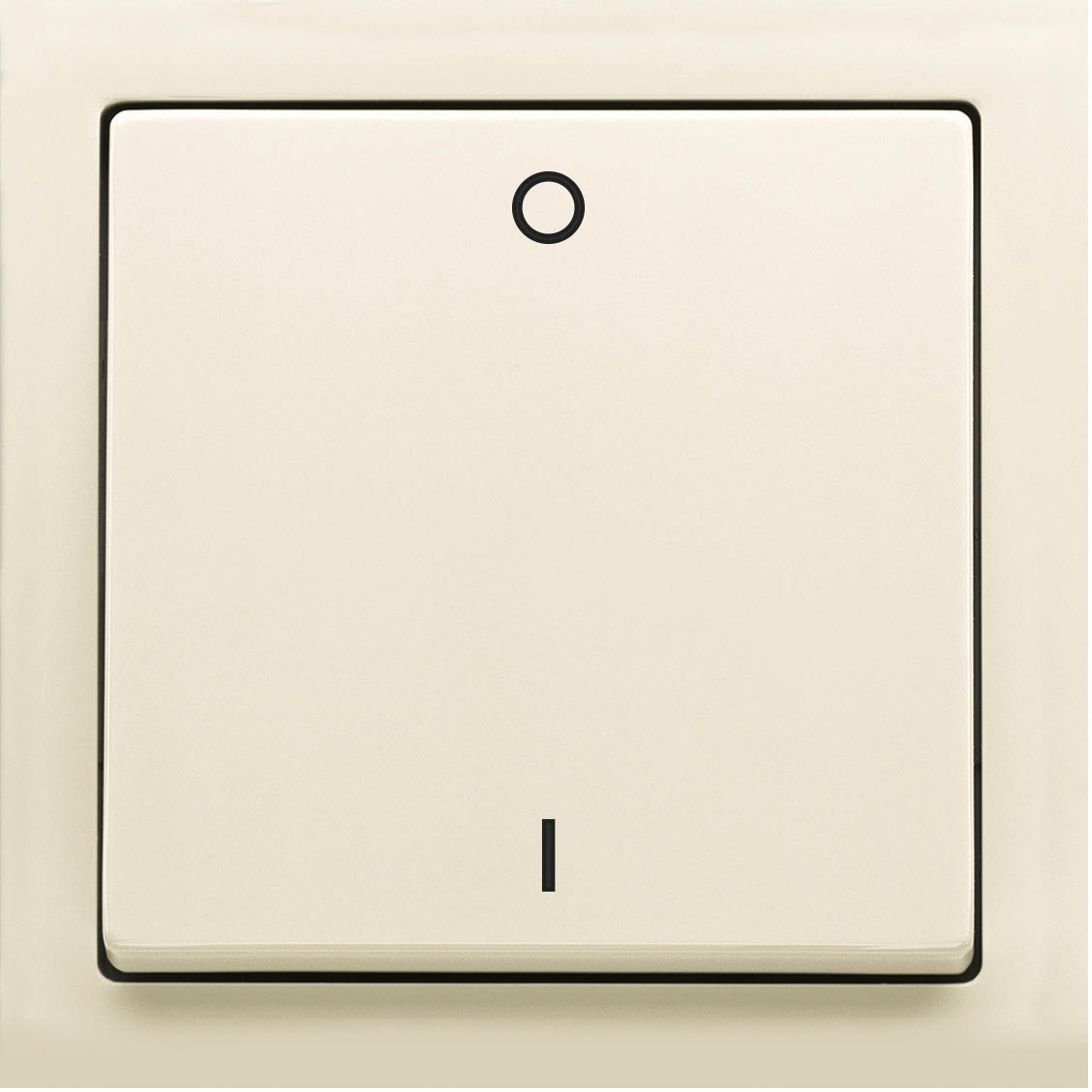

Switch 2-channel light BJ63x63 ivory white
Switch | EnOcean (868 MHz)
light ON/OFF | 1 switch, labelling {O/I}
Busch-Jaeger
| Application/type | Switch |
|---|---|
| Purpose | Lighting control |
| Interface | EnOcean (868 MHz) |
| On stock | No |
| Functions | lighting |
| Operating functions | light ON/OFF |
| Operating elements | 1 switch, labelling {O/I} |
| Radio technology | EnOcean (IEC 14543-3-10) 868 MHz, transmission power <10 mW, radio telegram, EEP F6-10-00 (RPS) |
| Data transmission | immediately on using the switch |
| Operating range temperature (°C) | -25..+65 |
| Operating ranges temperature (°C) | -25..+65 |
| Operating range humidity | max. 85% rH non-condensing |
| Power supply | maintenance-free electrodynamic energy generator |
| Enclosure | PC |
| Colour | ivory white |
| Switch ranges | Busch-Jaeger |
| Switch range Busch-Jaeger | Busch-axcent®, carat®, future® linear, solo®, (please specify the desired frame when ordering) |
| Mounting | surface-mounted flat on base using adhesive foil or screws |
| Delivery content | incl. 2 labels with read-out transmission ID, incl. adhesive foil for mounting |
| Packaging length (mm) | 90 |
| Packaging width (mm) | 90 |
| Packaging height (mm) | 35 |
| Packaging | case packaging |
| Device length (mm) | 73 |
| Device width (mm) | 73 |
| Device height (mm) | 15 |
| Notes | actuation force 7 N, actuation range 2 mm, operating cycle quantity > 50.000, frame designs Busch-Jaeger solo®, future® linear and Busch-axcent® at the same price, please ask for carat®, Busch-balance® SI see Wireless Switches 55x55, Please note our sheet 'Information EasySens® Radio' |
| Gefahrgut | No |
