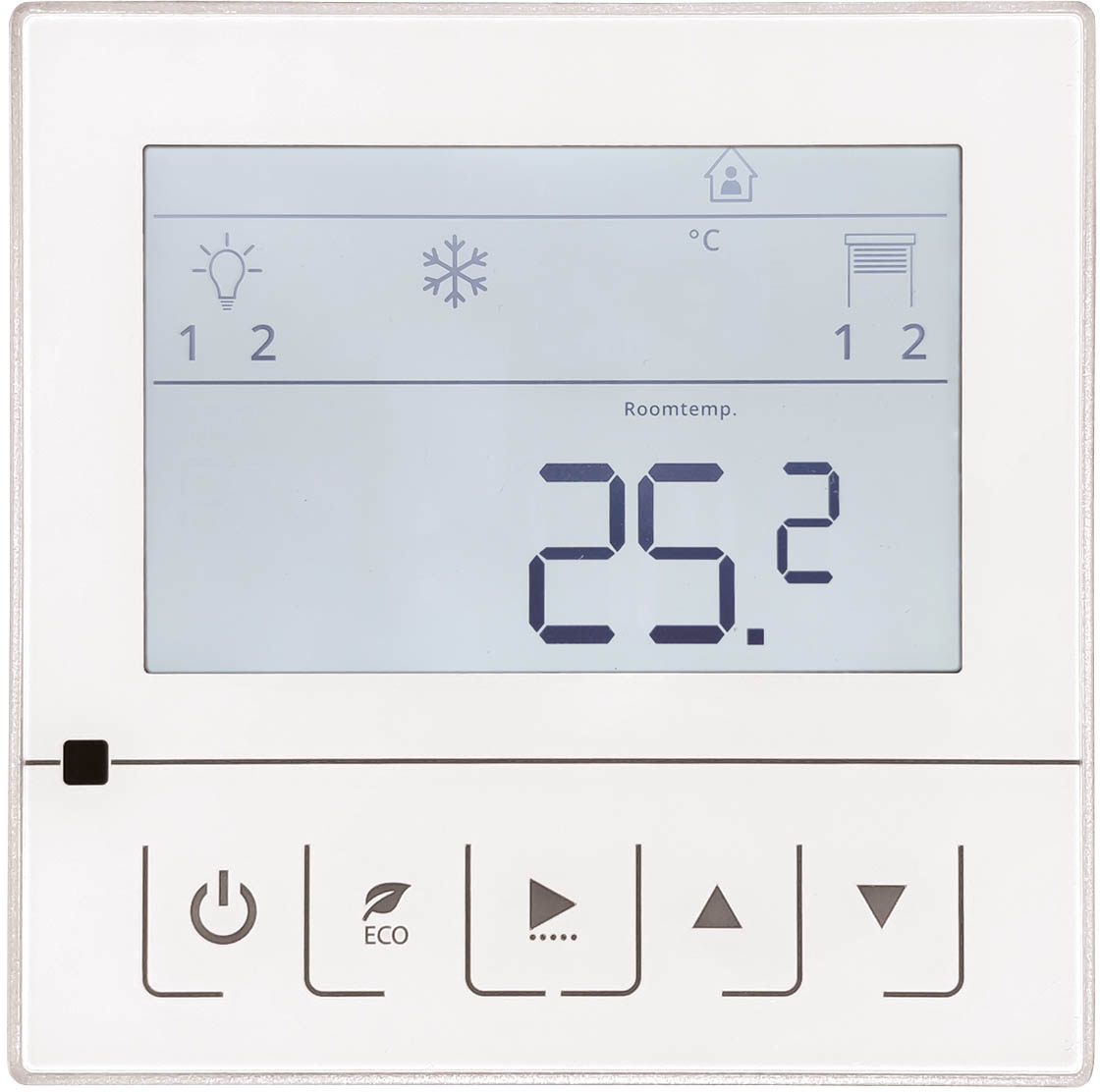

LCR Touch white temp_rH RS485 Modbus

Room operating unit temperature, humidity | RS485 Modbus | Room Climate Control, Lighting control, Shading control, Measure values

Application/type	Room operating unit
Purpose	Room Climate Control, Lighting control, Shading control, Measure values
Sensor elements	temperature, humidity
Measured values	temperature, relative humidity
Interface	RS485 Modbus
On stock	No
Functions	temperature control, fan control, lighting, blinds/shutter, night setback
Operating functions	setpoint adjustment 0..+50 °C, +16..+30 °C (default setting), optionally configurable, fan stage adjustment, light ON/OFF/DIM, blind UP/DOWN, ECO function, status displays
Operating elements	5 capacitive buttons
Input	1x input for change-over sensor NTC10k, 2x input digital for floating contact, 1x ESI for window contact, dew point, 1x OCC for presence detection, key card switch
Network technology	RS485 Modbus
Data transmission	RTU, half-duplex, baud rate 4.800, 9.600, 19.200 or 38.400, parity: none (2 stop bits), even or odd (1 stop bit)
Operating range temperature (°C)	-10..+50
Operating ranges temperature (°C)	-10..+50
Operating range humidity	max. 85% rH short term condensation
Accuracy temperature	±1 K (typ. at 21 °C)
Power supply	24 V = (±20%) SELV, 24 V ~ (±20%) SELV
Power consumption	typ. 0,3 W (24 V =), 5 VA (24 V ~)
Display	LCD 64x41 mm, backlight white
Enclosure	ABS
Colour	pure white, frame silver
Protection (IP)	IP20, according to EN 60529
Connection	terminal block, max. 1,5 mm², cable entry via rear opening
Mounting	flush-mounted in standard EU box (Ø=60 mm)
Packaging	case packaging
Device length (mm)	86
Device width (mm)	86
Device height (mm)	41
Gefahrgut	No
