DLF02

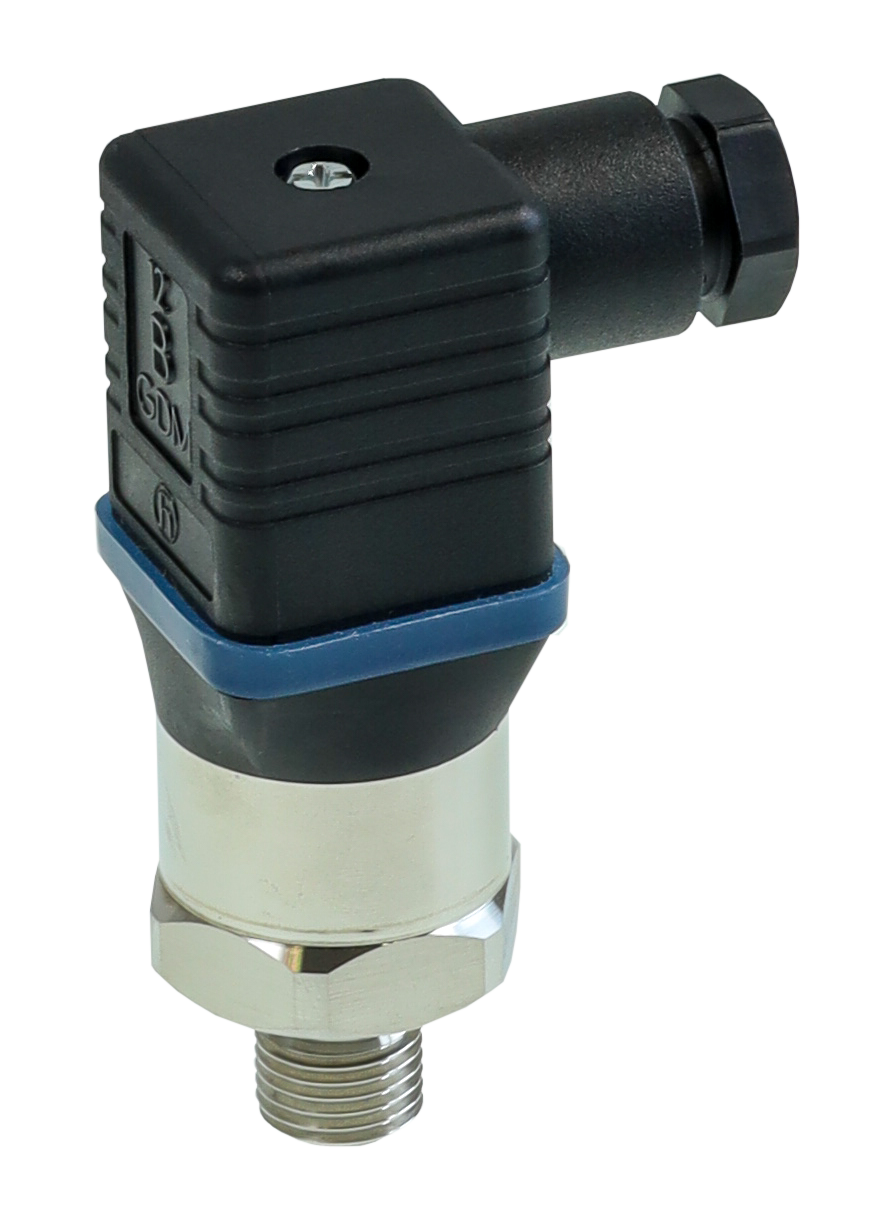

DLF02 25 A HS G1/4"
Pressure transducer fluids, air or other non-flammable/non-aggressive gases
pressure 0..25 bar | Active, 4..20 mA | IP65 according to EN 60529
| Application/type | Pressure transducer |
|---|---|
| Purpose | Measure values |
| Sensor elements | pressure |
| Measured values | pressure |
| Interface | Active, 4..20 mA |
| On stock | No |
| Output current | 4..20 mA, max. load 650 Ω |
| Operating range temperature (°C) | -30..+80 |
| Operating ranges temperature (°C) | -30..+80 |
| Operating range pressure | fluids, air or other non-flammable/non-aggressive gases |
| Measuring range pressure | 0..25 bar |
| Accuracy pressure | ±0,5% (typ. at 21 °C) |
| Power supply | 24 V = |
| Power consumption | typ. 0,5 W (24 V =) |
| Material in touch with media | stainless steel V2A (1.4301), G1/4" |
| Enclosure | stainless steel |
| Protection (IP) | IP65, according to EN 60529 |
| Connection | angle plug DIN 43650, type A |
| Packaging length (mm) | 170 |
| Packaging width (mm) | 120 |
| Device length (mm) | 50 |
| Device width (mm) | 35 |
| Device height (mm) | 97 |
| Catalogue table | Pressure transducer |
| Gefahrgut | No |
