AKF10+
AKF10+ BAT LRW 100.06

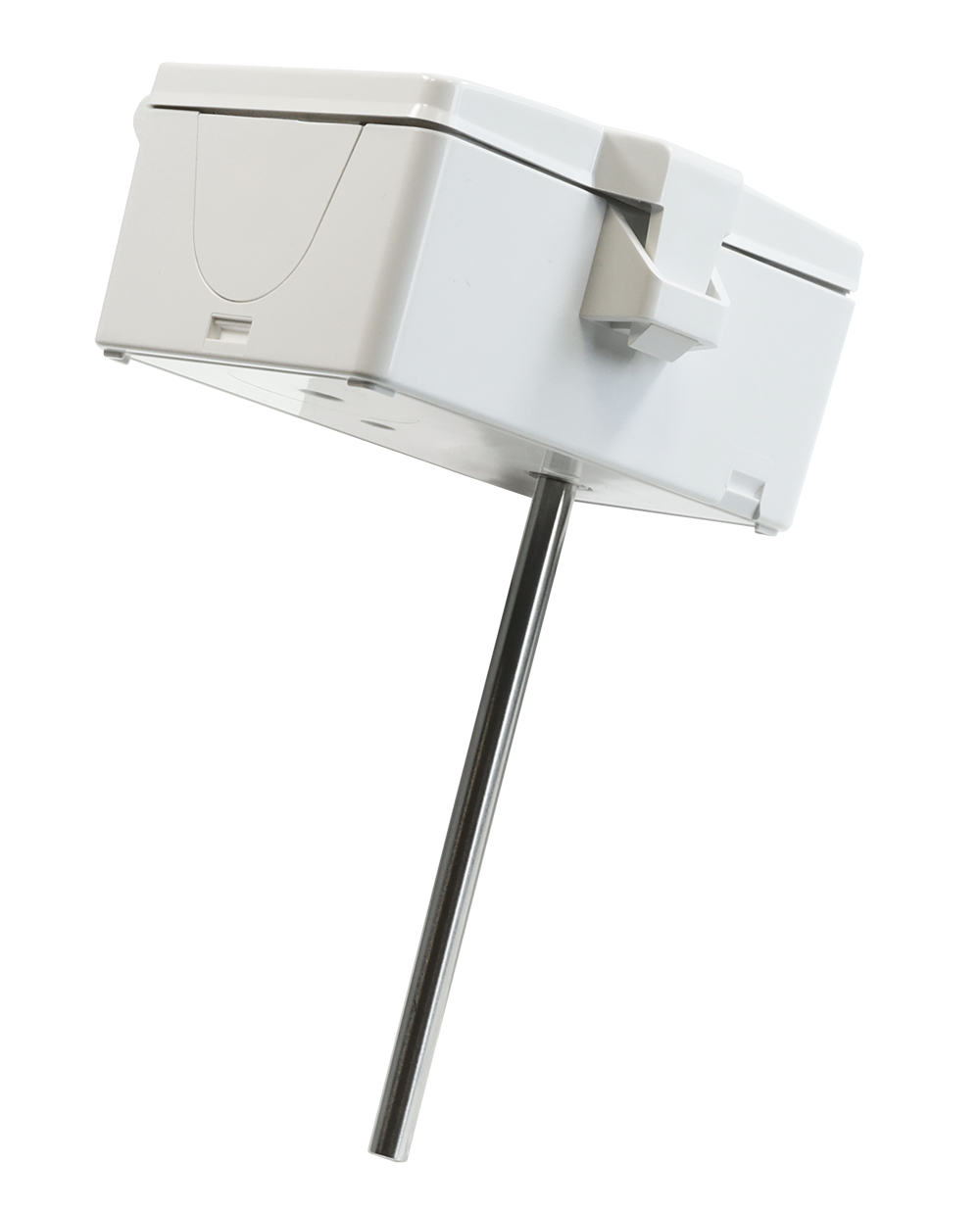

Duct sensor, Immersion sensor -50..+160 °C | LoRaWAN® (868 MHz) | IP65 according to EN 60529
Sensor probe, Ø=6 mm, stainless steel V4A (1.4571), suitable for usage in aggressive media, 100 mm
| Application/type | Duct sensor, Immersion sensor |
|---|---|
| Purpose | Measure values |
| Sensor elements | temperature |
| Measured values | temperature |
| Interface | LoRaWAN® (868 MHz) |
| On stock | No |
| Configuration | App, uConfig, LoRaWAN® Downlink |
| Sensor | SI-Protection against permeation of humidity and mechanical stress (e.g. vibration) |
| Radio technology | LoRaWAN® (868 MHz) |
| Data transmission | bidirectional |
| Operating range temperature (°C) | -50..+160 |
| Operating ranges temperature (°C) | -50..+160 |
| Operating range temperature enclosure (°C) | -35..+70 |
| Operating range humidity | max. 85% rH short term condensation |
| Accuracy temperature | ±0,5 K (typ. at 21 °C) |
| Power supply | battery type AA (2x) |
| Material in touch with media | Sensor probe, Ø=6 mm, stainless steel V4A (1.4571), suitable for usage in aggressive media |
| Installation length (mm) | 100 |
| Enclosure | USE-M, impact- and shock-resistant enclosure with quick-release cover, PC |
| Colour | pure white |
| Protection (IP) | IP65, according to EN 60529 |
| Mounting | when used as duct sensors: please use mounting flange MF6DS flexible (+90..+120 °C) or MF6 (brass, +120..+260 °C), for use as immersion sensors please use immersion pocket THVADS / THMSDS |
| Delivery content | incl. mounting flange MF6DS flexible, incl. mounting set (screws and accessories) |
| Packaging | case packaging |
| Gefahrgut | No |
