Mounting accessories

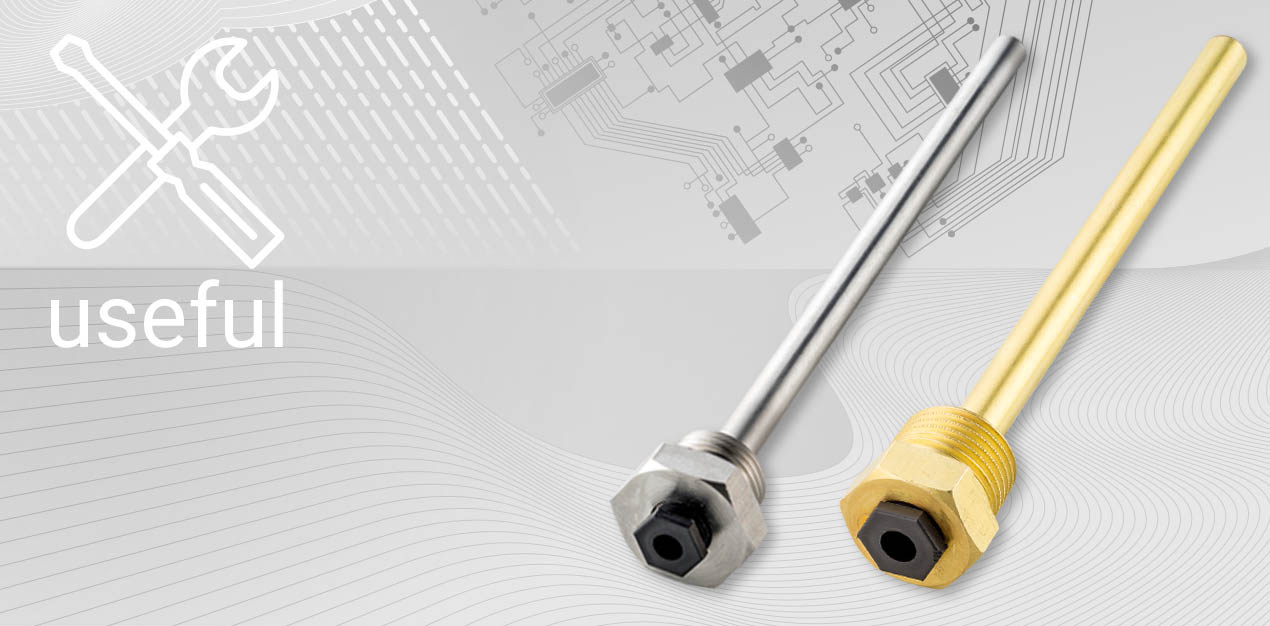

Thermowells

For using our sensors in liquid media thermowells are available for the standard mounting lengths made of brass and stainless steel, also without silicone if necessary.

Application/type	Thermowell, Accessories
Operating range temperature (°C)	0..+130
Operating range pressure	max. 16 bar, max. 40 bar
Material in touch with media	Ø=9 mm, brass, length 50 mm, length 100 mm, length 150 mm, length 200 mm, length 250 mm, length 300 mm, length 450 mm, SW22, R1/2"
Installation length (mm)	36, 86, 136, 186, 236, 286, 436
Device length (mm)	22
Device width (mm)	22
Catalogue table	Thermowells brass for sensors with pocket Ø=6 mm, Thermowells stainless steel for sensors with pocket Ø=6 mm, Thermowells stainless steel for sensors with pocket Ø=8 mm
