EasySens® Actuators

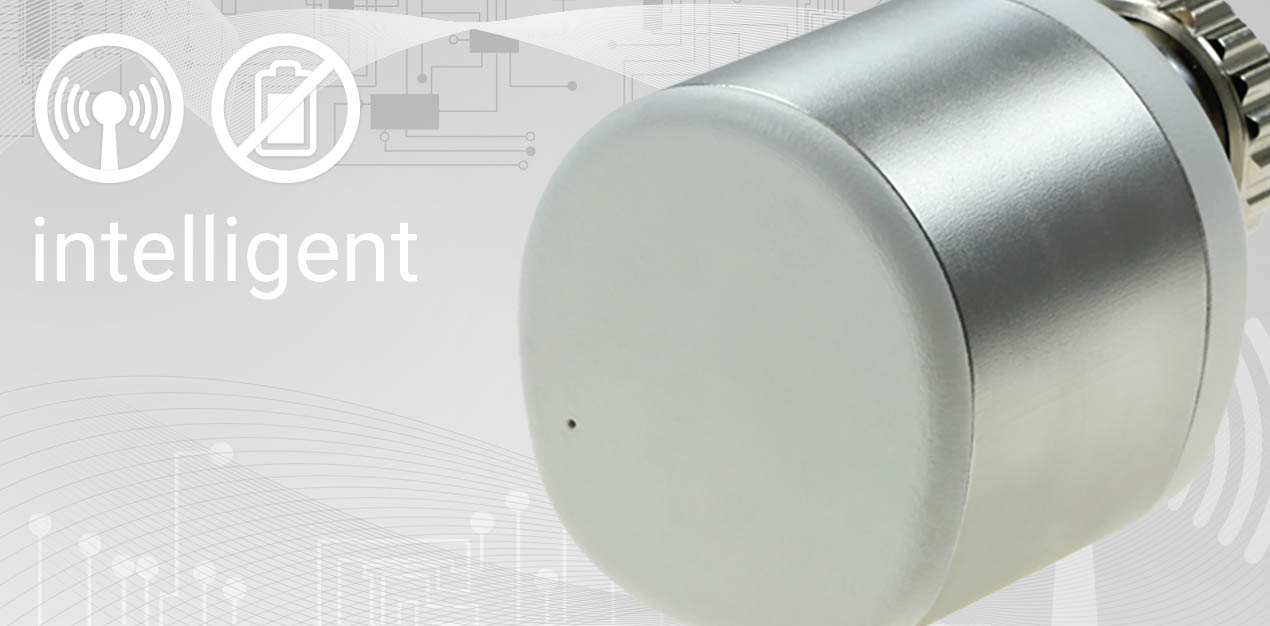

SAB+

Self-powered wireless EasySens® valve actuator for individual room temperature control. The new electronic heating valve actuator uses the temperature difference between the radiator and ambient room temperature to generate electrical energy by means of a thermo-electric generator. Sufficient energy can be stored in the integrated high-performance capacitor to ensure reliable operation even during periods of insufficient energy management (summer months, transition period between seasons). Adapters are available for numerous valve manufacturers.

Application/type Actuator
Purpose Room Climate Control
Measured values temperature
Interface EnOcean (868 MHz)
Functions heating actuator operation, self-control mode, automatic closing point control, frost protection
Configuration airConfig
Sensor integrated digital temperature transmitter
Radio technology EnOcean (IEC 14543-3-10) 868 MHz, transmission power <10 mW, EEP A5-20-01 (4BS)
Data transmission bidirectional, measuring and transmission interval: every 2..20 minutes, optionally configurable, internal antenna
Operating range temperature (°C) 0..+50
Operating range humidity max. 85% rH non-condensing
Power supply maintenance-free thermal energy harvesting, maintenance-free LiPo-battery
Display LED for status feedback, red
Enclosure PC
Colour pure white, aluminium
Protection (IP) IP40, according to EN 60529
Connection USB micro (power supply)
Mounting screw mounting M30x1,5
Packaging case packaging
Device length (mm) 63
Device width (mm) 60
Device height (mm) 85
Notes to use the free software airConfig (download) a USB stick, which is able to send and receive EnOcean telegrams, is necessary. The EnOcean USB stick (incl. license) is included in airScan (item No. 566704 for 868 MHz), operating noise <35 dB(A), nominal stroke 3,8 mm, automatically adjusting, regulation time 0,24 mm/s, pulling load >100 N, the Micro-USB connection allows charging of the internal battery directly at the socket using an USB power supply
