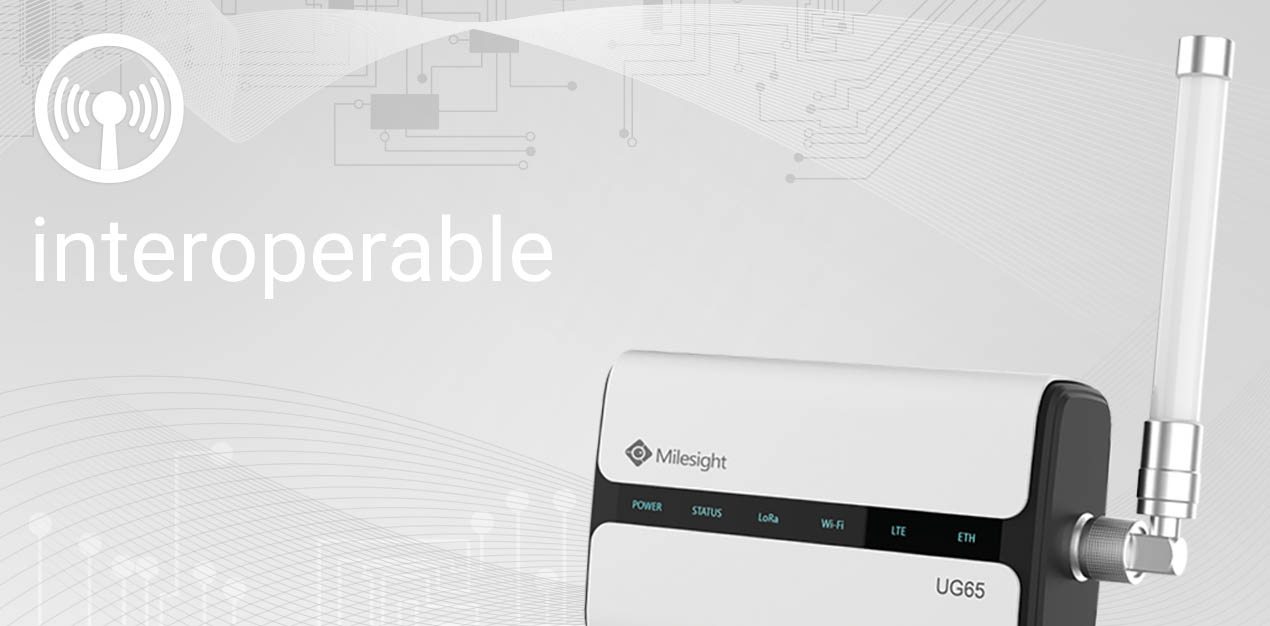

Gateway LRW Outdoor UG65-EA

LoRaWAN® outdoor gateway with external antenna and integrated network/application server. A MQTT interface (client) enables direct connection to higher-level systems. The configuration is done intuitively via an integrated web interface.

Application/type	Gateway
Purpose	Gateway
Interface	LoRaWAN® (868 MHz), TCP/IP, MQTT
Configuration	web interface
Network technology	TCP/IP, MQTT
Radio technology	LoRaWAN® (868 MHz)
Data transmission	bidirectional
Operating range temperature (°C)	-40..+70
Operating range humidity	max. 90% rH non-condensing
Power supply	18..24 V = SELV, PoE
Power consumption	typ. 3 W (24 V =)
Colour	white
Protection (IP)	IP65, according to EN 60529
Connection	RJ45 socket (8P8C) 10/100 MBit/s Ethernet
Mounting	mounting at the wall or at a pole
Delivery content	incl. mounting set (screws and accessories), incl. external power supply
Packaging	case packaging
Device length (mm)	198
Device width (mm)	45
Weight (g)	230
