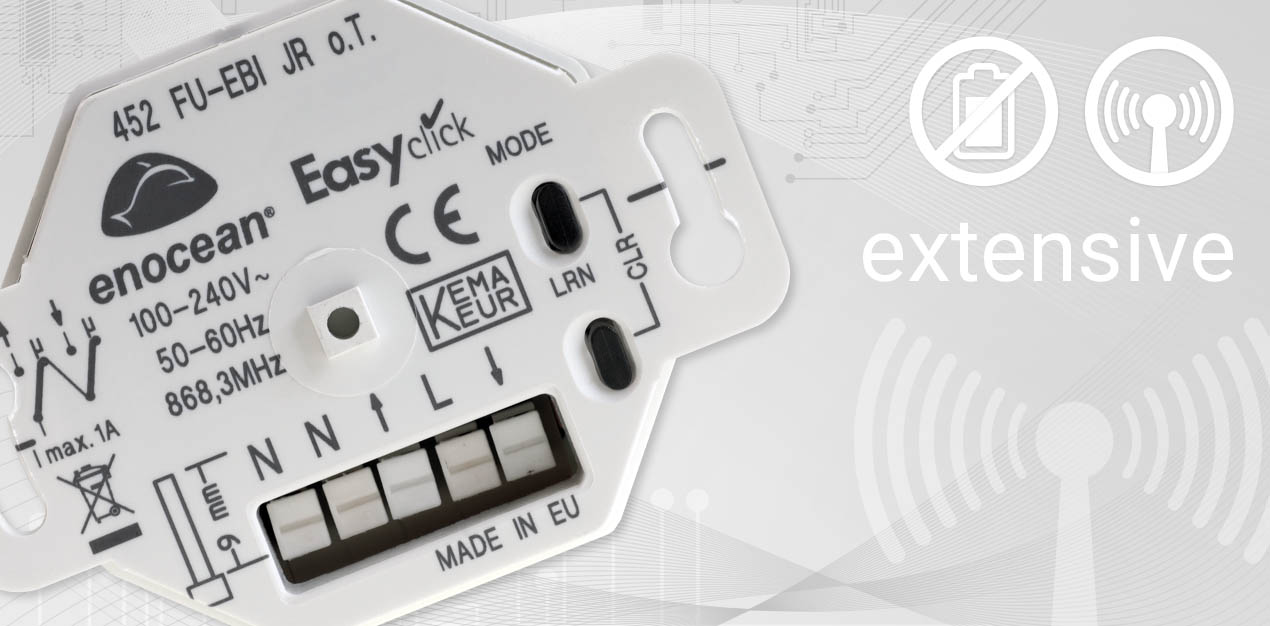

STC-DO Blind

Bidirectional flush-mounted receiving actuator for blind applications compatible with EasySens® wireless switches and room operating units. The functions can be parameterised via programming button.

Application/type	Actuator
Purpose	Room Climate Control, Lighting control, Shading control
Interface	EnOcean (868 MHz)
On stock	No
Functions	blinds/shutter, slat adjustment, switch actuator
Configuration	buttons
Radio technology	EnOcean (IEC 14543-3-10) 868 MHz, transmission power <10 mW
Data transmission	bidirectional, internal antenna
Operating range temperature (°C)	-20..+40
Operating ranges temperature (°C)	-20..+40
Operating range humidity	max. 85% rH non-condensing
Power supply	100..240 V ~
Power consumption	max. 0,5 mW (standby)
Enclosure	ABS
Colour	white
Protection (IP)	IP20, according to EN 60529
Connection	terminal block, max. 1,5 mm²
Mounting	flush-mounted in standard EU box (Ø=60 mm, depth min. 45 mm)
Packaging length (mm)	90
Packaging width (mm)	90
Packaging height (mm)	35
Packaging	case packaging
Device length (mm)	70
Device width (mm)	48
Device height (mm)	35
Weight (g)	55
Gefahrgut	No
