Gaseous Media

DPGe

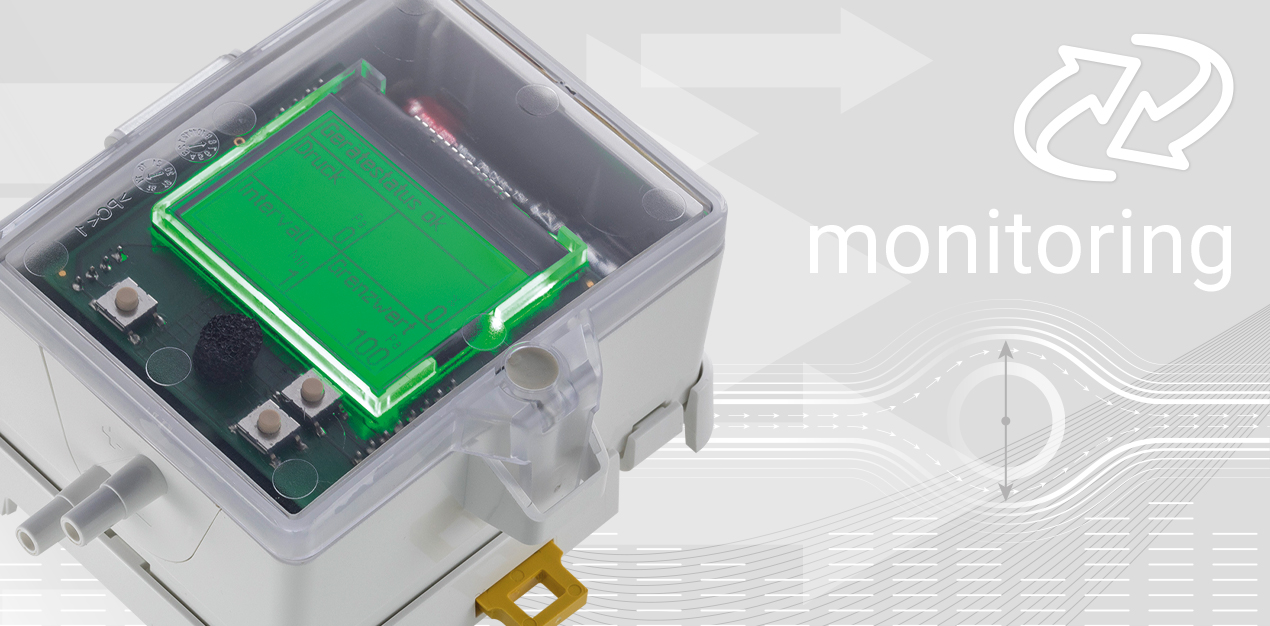

Compact electronic differential pressure manometer for displaying and monitoring differential air pressure in HVAC applications. Easy to retrofit in existing installations as the DPGe uses a AAA battery as a power supply.

Application/type	Differential pressure gauge
Purpose	Measure values
Measured values	differential pressure
Configuration	buttons
Operating range temperature (°C)	-10..+50
Operating ranges temperature (°C)	-10..+50
Operating range humidity	max. 85% rH short term condensation
Operating range pressure	max. 34 kPa
Measuring range pressure	0..2500 Pa
Accuracy pressure	±1,5% of measuring range
Power supply	battery type AAA
Power consumption	max. 60 mW (operating mode), max. 1 mW (standby)
Display	LCD 29x35 mm, RGB backlight
Enclosure	USE-M, impact- and shock-resistant enclosure with quick-release cover, PC, UV-resistant
Colour	pure white, transparent cover PC
Protection (IP)	IP65, according to EN 60529
Connection	connection tube: PVC, soft
Delivery content	incl. mounting set (screws and accessories), incl. pressure connection set and 2 m PVC connection hose, incl. battery type AAA
Packaging length (mm)	152
Packaging width (mm)	128
Packaging height (mm)	65
Packaging	case packaging
Device length (mm)	85
Device width (mm)	65
Device height (mm)	45
Catalogue table	Differential pressure gauge
Gefahrgut	No
